Mechanical Series

TW SERIES

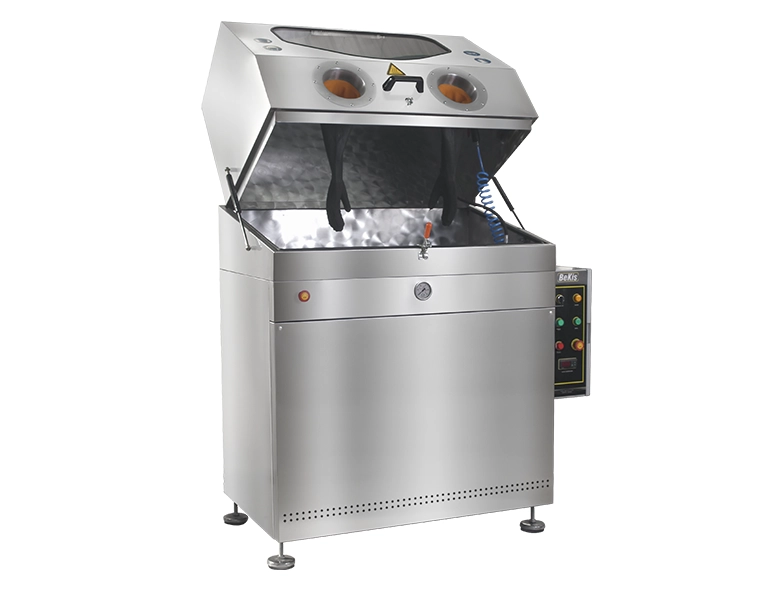

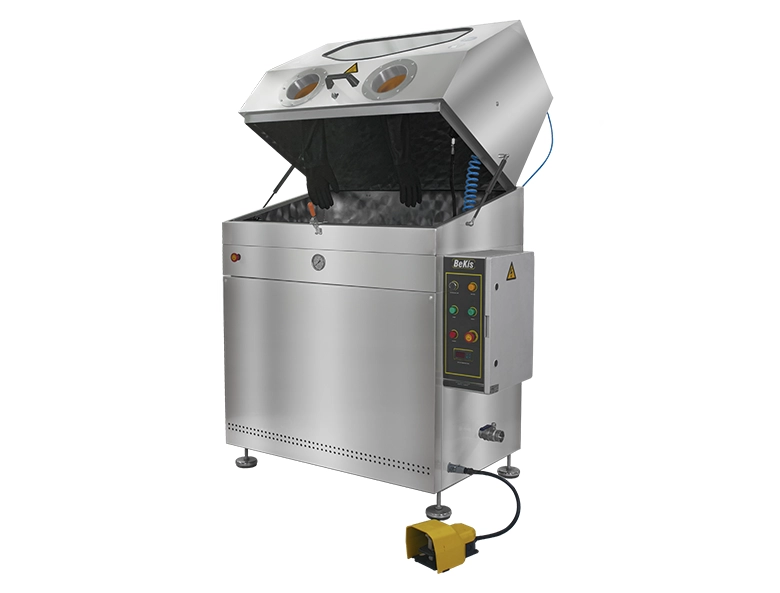

Tw 1001 allows the operator to wash the parts that are difficult to clean from outside in a cabin using high pressure water using gloves. The operator starts the washing using the foot pedal, and thanks to this pedal, an easy and controlled washing is achieved. The parts are 100% cleaned with hot water, washing solution and high pressure. You can adjust the water temperature and pressure. After washing, you can dry it with the air gun in the cabin. Filters inside and outside the washing tank ensure longer use of water.
General Informations
Stainless steel body
High Pressure Pump
Cleaning gun and gloves
Temperature Control
Pressure Control system
Pneumatic or Mechanical Door
Cartrige and Tank filters
Water Level Sensor

Electric components suitable Europe

Technical Spesifications

TW 2001 TW 1001
External Dimensions: 95x85x200 cm 80x70x180 cm
İnternal Dimensions: 85x60x50 cm 65x45x40 cm
Loading Weight: 110 kg 75 kg
Tank Capacity: 120 lt 75 lt
Body Stracture: AİSİ430 (AİSİ 304 OPTİONAL) Stainless Steel
Electricity: 380 / 3 phase - 220 / single phase 380 / 3 phase - 220 / single phase
Cleaning Pump : 2.5 kw 2.5 kw
Pump Pressure: 150 bar 150 bar
Pump Power: 3 hp x 1 3 hp x 1
Water Temprature: available available
Water Heater: 2 x 2.5 kw (max. 80 degree) 2 x 2.5 kw (max. 80 degree)
Electric System: Schneider/Siemens Electric Schneider/Siemens Electric
Electric Panel: CE Certification CE Certification
Electric Frequency: 50 hz-60 hz 50 hz-60 hz
Door: Mechanic Mechanic
Water Filters: Cartrige Filter and Tank Filter Cartrige Filter and Tank Filter
Control: Mechanic Mechanic
Necessary Connections: 10 bar Air Compresseur 10 bar Air Compresseur
Discharge Station: Available Avaliable
Lighting System: Led Light (WaterProof) Led Light (WaterProof)
Foot Pedal: Available Available
Manometer: Available Available
Drying: Air Gun Air Gun
